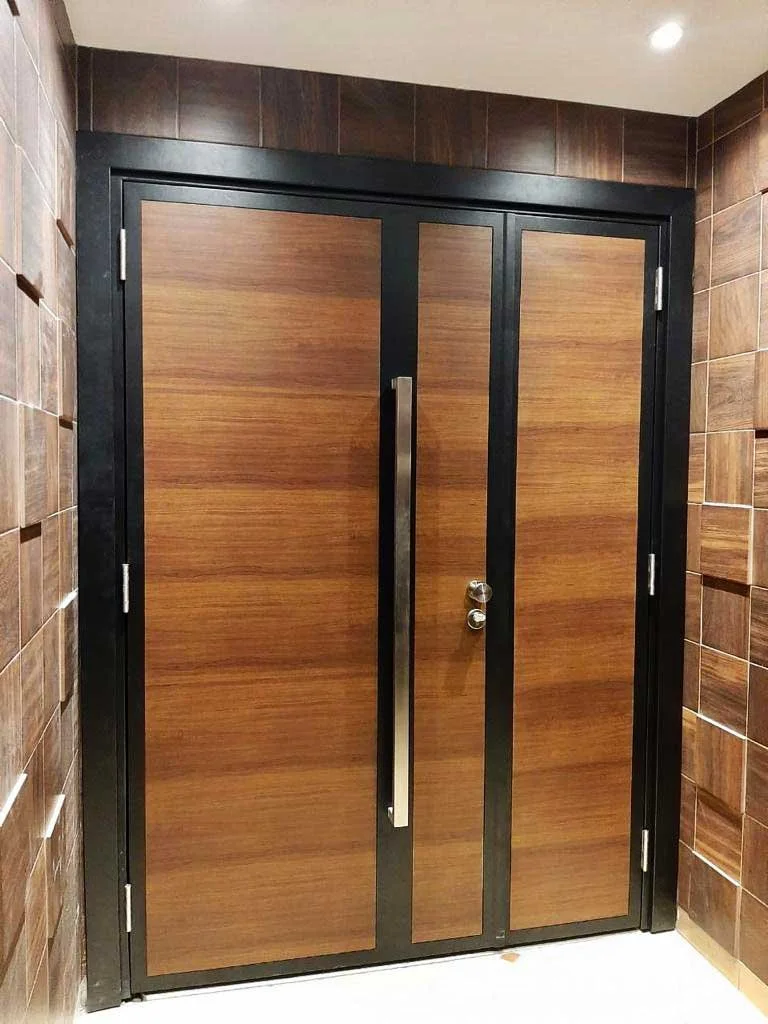

Fire Door and Frames

ADVANCE METAL will provide doors in compliance with ANSI/SDI-100 requirements. ADVANCE METAL will provide fire rated doors labeled and listed by Underwriters Laboratories Inc. (or) warringtonfire mideast.

Door Construction

  • 45mm (13/4”) thick full flush construction with the details confirming to SDI-111A-EDGE considered.

  • Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.2mm (18ga.) or 1.5mm (16ga.).

  • Vertical edges are interlocked.

  • 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity.

  • Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements.

  • Tested according to UL10(B) and labelled up to 3 hours. Available with wide range of glass light and louver preparations.

  • Fire rated, Labeled: Available in sizes up to 4’x8’ single and 8’x8’ double. larger sizes are also available with oversize certification.
